BCFW with CLIMB™ Technology

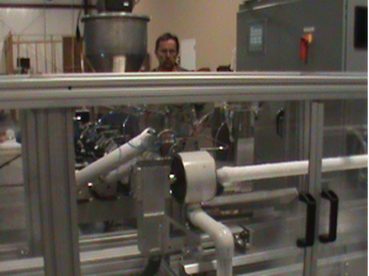

The BCFW (Batch Cartridge Filter Winder) is designed to manufacture high performance Melt Blown Cartridge Filters, including Carbon-impregnated Cartridge filters, at a fraction of the cost of our  CCFW lines.

Do you want to sell a Melt Blown cartridge filter that exceeds the performance of all other Carbon impregnated Cartridge Filters?

The BCFW is the perfect size for short runs so you can eliminate the problem of not having the inventory that your customer urgently needs.

With the BCFW you can keep inventory costs low and control the quantity, quality and delivery of your products tailored to each customer's individual needs.

The new BCFW  with CLIMB Technology Carbon-impregnated Cartridge filter machine will allow you to become an industry leader with an equipment lease payment lower than your monthly inventory costs.

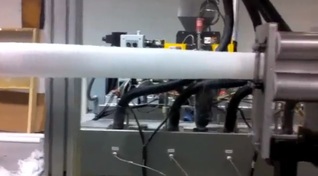

The BCFW makes melt blown filters 2.5” diameters up to 4.5” diameters and up to 50” long.

PMI AMERICA
5489 Technology Pkwy
Braselton, GA 30517
USA
Tel: 404-316-3622
CE Compliant Controls
  • Touch Screen and recipe driven software
  • We have developed a very easy to operate, yet flexible Touch Screen Control System with Recipe storage for multiple products.
  • Our control cabinets are NEMA 4 and all components are CE certified, as well as the cabinets themselves.
  • Your Process Engineer can upload a pre-set Recipe for the multiple products. The Recipes will have all of the pre-determined set-points for all the variable parameters, which include Die Pressure, Air Pressure, DCD, Rotational Speed, Linear Speed, and many others that are required to make a particular filter. Once the Recipe is uploaded, all the operator has to do is press the Green Start Button!
  • Operator interface consists of loading and unloading mandrels or cores, and pressing the start button. It is very simple for the operator.

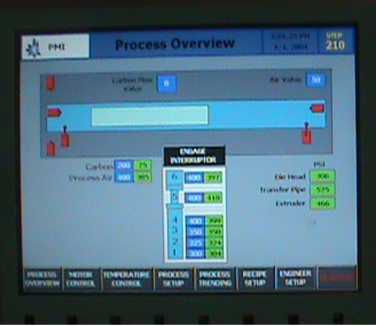

PROCESS OVERVIEW SCREEN This screen shows all critical parameters of the process on one screen. When operating in Automatic mode, this is the primary screen.
MOTOR CONTROL SCREEN This screen allows manual control of each motor in the system. This is typically used when performing R&D or when the process engineer wants to drive manually.
RECIPE SCREEN The Process Engineer will program all the set-points of the recipe into this screen that is then saved to be recalled for future production.
SIMPLIFIED MANUFACTURING USING MODERN TECHNOLOGY


  • “Simplicity” is what we had in mind when we approached the design of our new BCFW Meltblown Filter Winders.

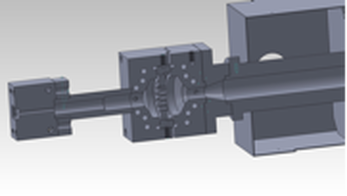

  • All of our machines 3D modeled in the latest CAD-CAM software.
  • Built using standard “off the shelf” electrical components.
  • Siemens PLC and Touch Screen Control
  • CE Certified
  • Three-Light Alarm Tree for “under temp” or “High Pressure” alarms.
  • Filters can be made with or without core
  • Makes Meltblown Filters 2.5” Dia. up to 4.5” Dia. and up to 50” Long
